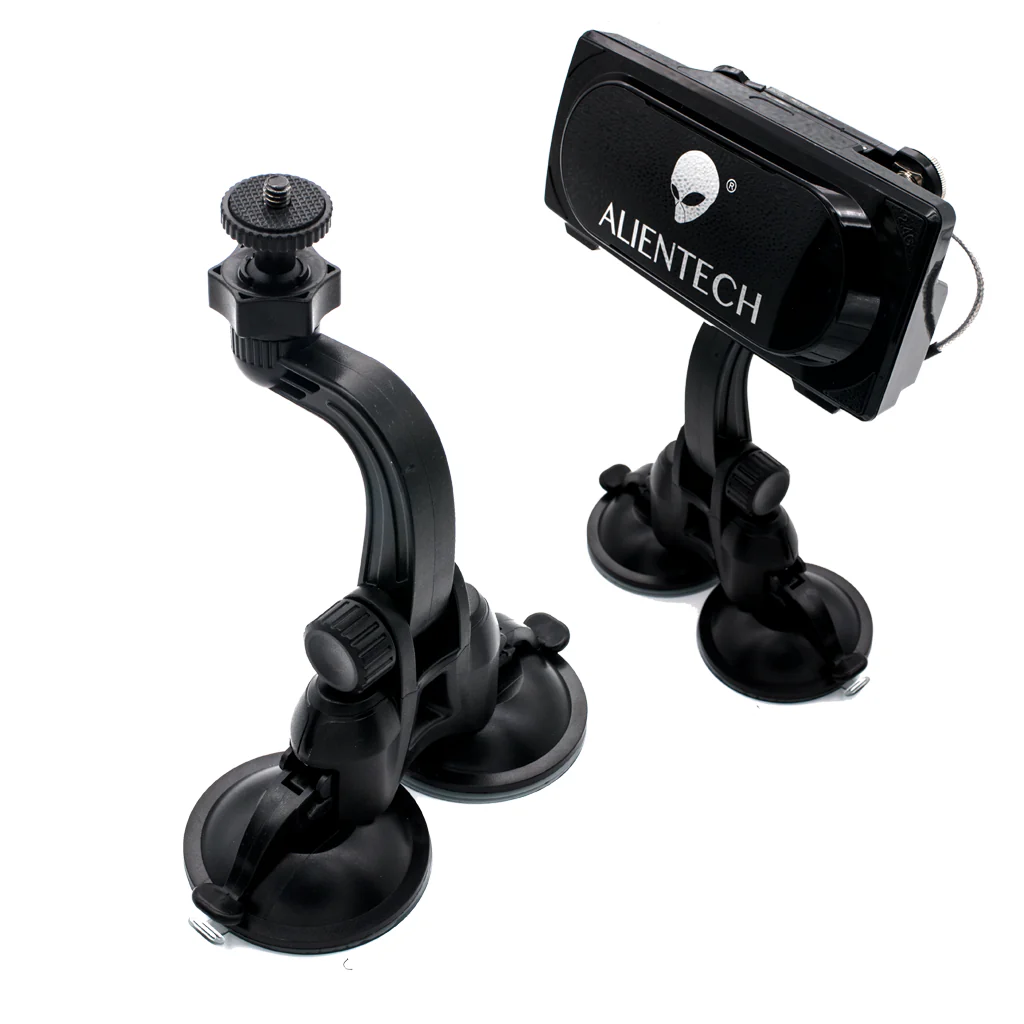

Extension coaxial cables / bracket with two suction cups which can be Fixed on the car roof for ALIENTECH antenna signal booster

Product image 1
1 / 6

Extension coaxial cables / bracket with two suction cups which can be Fixed on the car roof for ALIENTECH antenna signal booster

Each cable assembly is 100% Tested for continuity & a dielectric withstanding voltage of 1500 Vrms

50 Ω impedance, rated for 4.0 GHz Max. / 500 V Max. / -40°C (-40°F) to 85°C (185°F)
Cable Type: RG-223/U coaxial with black, non-contaminating, Type IIA PVC jacket (OD 0.212")
Connector A: BNC male straight plug with gold-plated contact & nickel-plated brass body (500 mating cycles)
Connector B: BNC male right angle (90°) plug with gold-plated contact & nickel-plated brass body (500 mating cycles)



Cable Length and Signal Loss

1 Meter:  2.4G=1.23dB  5.8G=1.8dB
2 Meters: 2.4G=1.62dB  5.8G=2.4dB
3 Meters: 2.4G=2.43dB  5.8G=3.6dB
4 Meters: 2.4G=3.24dB  5.8G=4.8dB
5 Meters: 2.4G=4.07dB  5.8G=6.01dB
6 Meters: 2.4G=4.89dB  5.8G=7.2dB
7 Meters: 2.4G=5.7dB  5.8G=8.4dB
8 Meters: 2.4G=6.52dB  5.8G=9.6dB

Select Style
From $6.00

Original: $20.00

-70%
Extension coaxial cables / bracket with two suction cups which can be Fixed on the car roof for ALIENTECH antenna signal booster—

$20.00

$6.00

Product Information

Shipping & Returns

Description

Each cable assembly is 100% Tested for continuity & a dielectric withstanding voltage of 1500 Vrms

50 Ω impedance, rated for 4.0 GHz Max. / 500 V Max. / -40°C (-40°F) to 85°C (185°F)
Cable Type: RG-223/U coaxial with black, non-contaminating, Type IIA PVC jacket (OD 0.212")
Connector A: BNC male straight plug with gold-plated contact & nickel-plated brass body (500 mating cycles)
Connector B: BNC male right angle (90°) plug with gold-plated contact & nickel-plated brass body (500 mating cycles)



Cable Length and Signal Loss

1 Meter:  2.4G=1.23dB  5.8G=1.8dB
2 Meters: 2.4G=1.62dB  5.8G=2.4dB
3 Meters: 2.4G=2.43dB  5.8G=3.6dB
4 Meters: 2.4G=3.24dB  5.8G=4.8dB
5 Meters: 2.4G=4.07dB  5.8G=6.01dB
6 Meters: 2.4G=4.89dB  5.8G=7.2dB
7 Meters: 2.4G=5.7dB  5.8G=8.4dB
8 Meters: 2.4G=6.52dB  5.8G=9.6dB
